12 VDC (-)????

Question

Odd question...

I was gathering everything and making my list for the install.  Everything seems pretty simple, BUT I have noticed that there is NO noted 12 vdc (-) reference for the EVOALL.  This is my first Fortin install so i just wanted to confirm this? In my 30+ years in low voltage work, I do not think I have come accrossed this.

Answer 1

Hello,

Must be a typo, 12v is +, ground is -.

What is the guide number (found on page 1)? I will send it in for review by our graphics dept.

Best regards

Comments

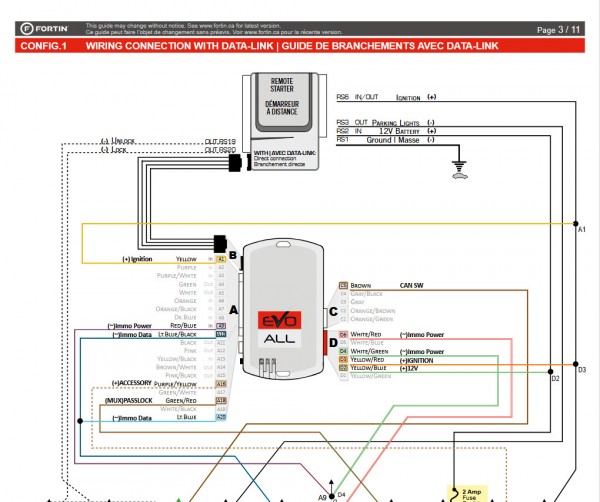

Not exact sure what your responce means.  Guide # 78621

What I am asking is why doesn' t the EVOALL have a GROUND 12VDC (-) ? If it does, where is it located? A1-A20 has nothing marked as GROUND. D1-D6 are obviously DATA. C1-C5 are the CAN BUS.

---

The evo-all will get power and ground through the data link (connector B), which will come from the power and ground connected to the remote starter module, hopefully this helps.

---

Thank you
